About BMWAiCoder
The most widely known BMW vehicle coding software program is E-Sys. Instead of providing robust functionality, you have to install the Launcher for the token and install psdzdata. Also, there is an initial entry barriers because it is not easy to learn how to use and become proficient.
BMWAiCoder is a program that makes it easy to lower the entry barriers and make coding easier. Just install BMWAiCoder and you can start to use it in English, but each button has a number so you can easily code by following the numbered steps. However, it has the disadvantage that it is limited in functionality compared to E-Sys and it is not stable. It is better to use it to fix some coordinates quickly and easily, rather than using it as a full-scale coding tool.
Download
Version 5.0 of the Chinese test version is now available. The international version will be released soon, the creator said.
The language is not yet fixed, but if you want to try it out, download it and try it out.
Download BMWAicoder v5.0
If you need 100% safe program along with ISTA, ETK, KSD, INPA, NCS Expert, WinKFP, E-Sys 3.27.1, Psdzdata 59.0), BMW FSC code generator etc, buy BMW ICOM Software (latest V2017.7) HDD instead.
install
If you unzip it, you can use it immediately and there is no installation process.
Depending on the vaccine, the executable program may be recognized as malicious code. In this case, please allow it, if you are uneasy, please delete it.
How to use
Connect the vehicle and the laptop with a coding cable and turn the vehicle on.
BMWAiCoder.exe Run in the unpacked folder .
When you run the program, the first firewall access pop-up may appear.
액세스 허용Please select.
After running the program, the keyword download window will open automatically. The process of downloading additional items to be coded on the Internet. Since it will be used in English, press button
English while is selected Download.
If you do not see this screen when you first run it, or if you accidentally hand it over, do not worry.
Custom You can download it again at any time by pressing Menu.
The program execution screen.
The coding process is easy to explain. You will see a button with a number, you can follow this button in order to complete the coding. Of course, with understanding of coding coordinates and basic coding concepts.

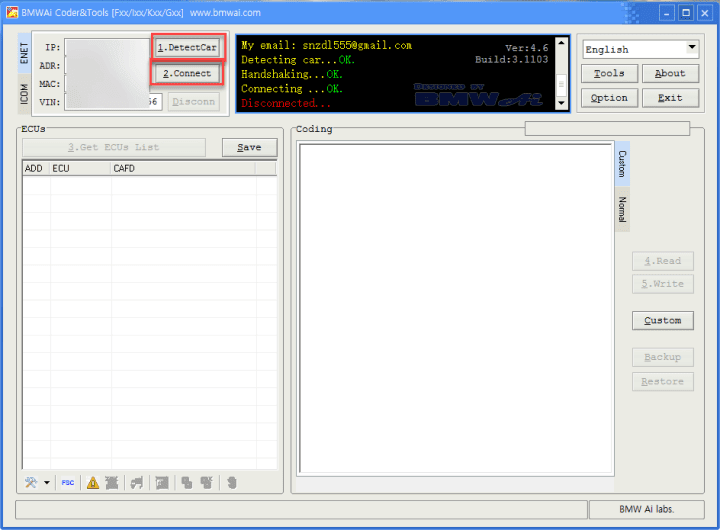

1.DetectCar 2.Connect Press and press to connect to the vehicle.
3.Get ECUs List Press to bring up the entire module list.
Select one of the modules you want to code from the ECU list.

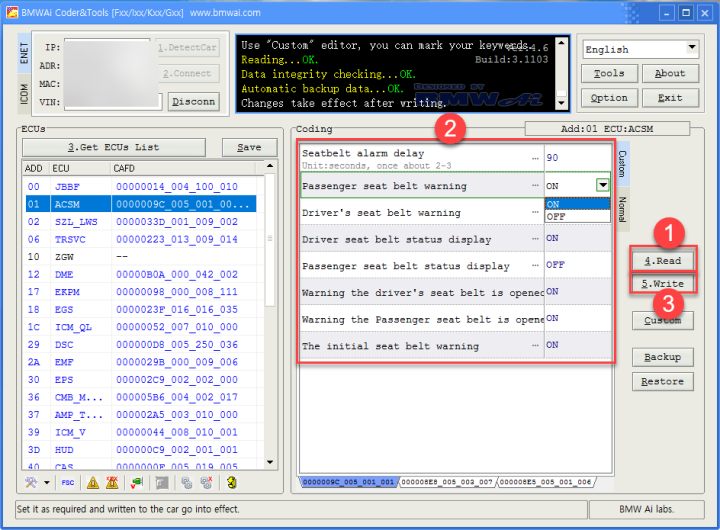

4.Read Button to call up a list of coding coordinates that can be made in the module [1]. After changing the value of the desired item, press the [2] 5.Write button to raise the modified value to the vehicle [3].
If you want to cancel the modification and return to the original value,
Restoreclick the button.
If you want to see the coding coding for each module, please refer to the document below.
summary
You can use the BMWAiCoder to obtain the FSC code required to update the BMW car navigation map. The easiest way to obtain a map update FSC is because the program is easier to install than the existing E-Sys or Dr.Gini approach and the steps are shorter.
How to proceed
If you have not installed BMWAiCoder, please read Part I above first and proceed with installation.
After installation, connect the vehicle and cable, then turn on the vehicle.
1.DetectCar 2.ConnectPress and press to connect to the vehicle.
3.Get ECUs List Press to bring up the entire module list.
FSC Run the tool. As you can see on the screen below FSC, click the button or select from the menu FSC Tools.
FSC Tools The screen will be displayed 00DE, double-click on the navigation list in the left list . Select or 00DE, then Load FSCpress.Country Type in to mean Korea 00A6.VerCode0028 Enter the URL for this map version .
The rest
VINor NBT/CICinformation will already be entered, so there is no further change.Generate When you click the button, FSC is created at the bottom.
There is a way to copy the FSC or fill it out and write it later when updating the map
Write to car. If you enter it directly into the car, you will automatically be prompted to FSC the next time you update the map.
